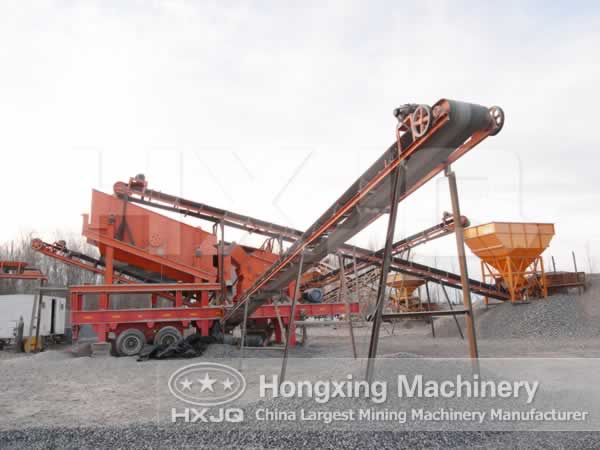

Stone Crushing Plant

Stone Crushing Plant


Production Capacity:50-800t/h

Application Ranges:mining,stone crushing production

Stone production line is mainly composed of vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor and centralized electronic control.

Introduction to Stone Crushing Production Line

The general process of stone crushing production line, also called the stone crusher plant, stone crushing plant, stone produciton line or rock crushing plant, is as follows: (silo)-feeder-jaw crusher-impact crusher-vibrating screen-(finished product). Machines are connected by conveyors. First of all, stones are evenly sent to coarse crusher of the stone production line by feeder for preliminary crushing, and crude materials are transmitted to impact crusher by belt conveyor for further crushing, then the materials after fine crushing will be sent into the vibrating screening, which will produce stones with different specifications, and the stones that do not meet the size requirements will be sent back into the impact crusher for secondary crushing, thus finishing the process of the stone production line.

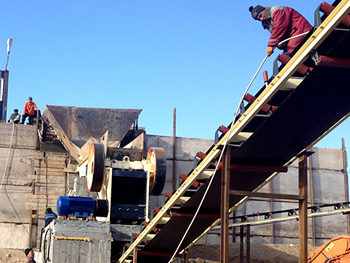

Stone Crushing Plant

Characteristics of Stone Crusher Plant

1. Stone crushing production line or stone crusher plant has features of high automation degree, large crushing ratio, high efficiency, large handling capacity, cube-shaped finished products with low flakiness content and high compressive strength.

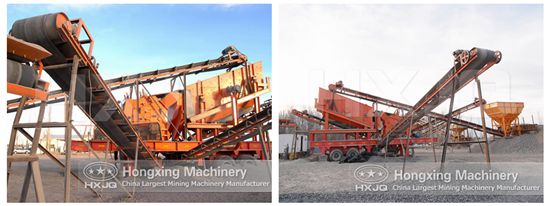

stone production line

2. The stone crushing plant or stone production line is easy to maintain and repair; the wearing parts of our stone crusher plant are made of abrasion resistance material with domestic advanced level, which are low in abrasion and long in using life. The stone crushing plant or rock crushing plant can bring considerable economic profits for customers.

3. Stone crushing production lines or rock crushing plants designed by our company are successfully applied in limestone, basalt, granite and pebble; the finished product reaches the standard of GB14685-2001, which is the best aggregate for highway, railway, water conservancy and concrete mixing station.

Technical Data

MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model HX938F1210 HX938FW1214 HX1149F1315 HX1349HD1110 HX1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model HX938HD80 HX1149HD98 HX1349HD110 HX1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model The Maximum
Feeding Size
(mm)
Production Capacity
(t/h)
HX938F1210 350 70-130
HX938FW1214 350 100-180
HX1149F1315 500 130-250
HX1349HD1110 400 112
HX1349HD1315 700 280

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model Maximum Feeding Size(mm) Capacity(t/h)
HX938HD80 500 85-275
HX1149HD98 550 110-350
HX1349HD110 660 215-510
HX1349HD125 800 280-650
