Hammer Crusher

Hammer Crusher


Processing ability: 5–150 t/h

Inlet size: 1020×750–1850×1400 mm

Feeding size: ≤600–≤1200 mm

Applied material: limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, etc

Overview of Hammer Breaker

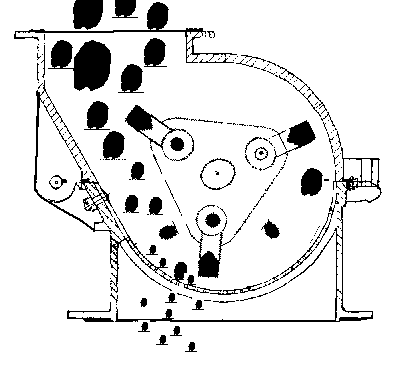

Hammer crusher or hammer breaker is widely used for medium and fine crushing of medium hard materials such as limestone, coke, coal in the cement, chemical, electric power and metallurgy and other industries. The hammer breaker can be divided into single stage hammer crusher, high efficiency hammer crusher, vertical shaft hammer crusher and reversible hammer crusher. Hammer mill crusher is composed of body, rotor, hammer head, counterattack liner, sieve plate, etc.

Hammer Breaker

China Hammer Crusher Main Application

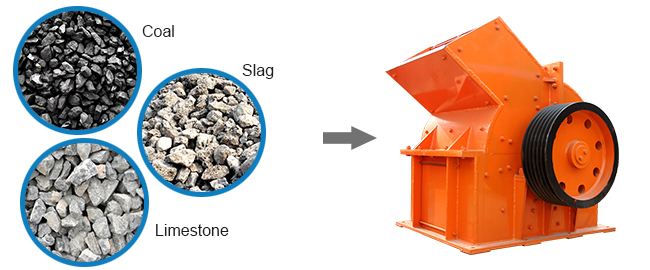

China Hammer crusher or hammer mill crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 100Mpa and  moisture within 15%, such as coal, salt, chalk, plaster, brick, limestone, etc. China Hammer crusher also can be used for crushing fiber, elastic and resilient wood and paper, or crushing the asbestos waste. In addition, the hammer mill crusher can be not only applied in the crushing production line and sand production line, but also used for replacing cone crusher in the ore beneficiation line.

Hammer Crusher

Features

(1) The hammer head of the hammer crusher machine is casted by new process, with wear-resistance and impact resistance.

(2) Hammer crusher machine can adjust the production size according to the customer requirements.

(3) The seal structure can avoid the dust pollution and powder leakage.

(4) Hammer crusher machine is the upgrading product with attractive appearance, compact structure and less wearing parts, and it's easy to maintain.

(5) Hammer crusher has attractive appearance and wear resistance, and it is easy to operate and maintain.

Hammer Crusher

Single-stage hammer crusher

Single stage hammer crusher, also known as combined hammer crusher, is mainly used for crushing limestone. The large-scale single stage hammer crusher has powerful crushing capacity, which can directly crush the limestone with diameter of 1m into 20mm. Single stage hammer crusher has a large number of applications in cement industry.

Technical Data

Model
Specification
Feeding
Size
(mm)
Discharging
Size
(mm)
Capacity
(m³/h)
Motor
power
(kw)
Total
weight(t)
Dimensions
(L×W×H)(mm)
PCΦ400×300 ≤200 ≤25 5-10 11 0.8 900×670×860
PCΦ600×400 ≤250 ≤30 10-22 22 2.26 1200×1050×1200
PCΦ800×600 ≤250 ≤35 18-40 55 4.8 1310×1180×1310
PCΦ1000×800 ≤350 ≤35 25-50 75 5.9 1600×1390×1575
PCΦ1000×1000 ≤350 ≤35 30-55 90 8 1800×1590×1775
PCΦ1200×1200 ≤350 ≤35 50-80 132-160 19.2 2060×1600×1890
PCΦ1400×1400 ≤350 ≤35 50-100 280 32 2365×1870×2220
PCΦ1600×1600 ≤350 ≤35 100-150 480 37.5 3050×2850×2800
