Raymond Mill

Raymond Mill


Processing ability: 2-120 t/h

Feeding size: ≤15-≤30mm

Applied material: barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite.

Introduction

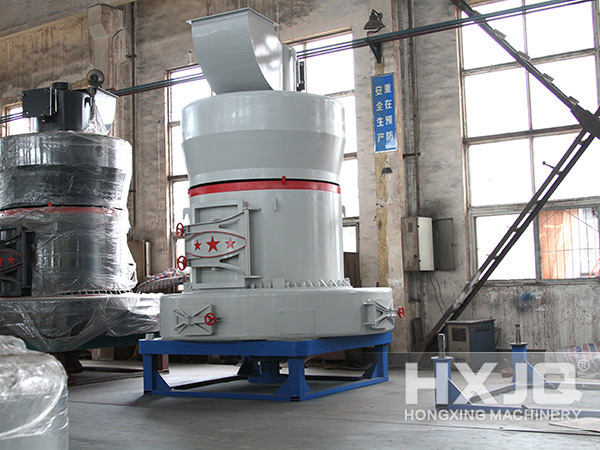

Raymond Mill

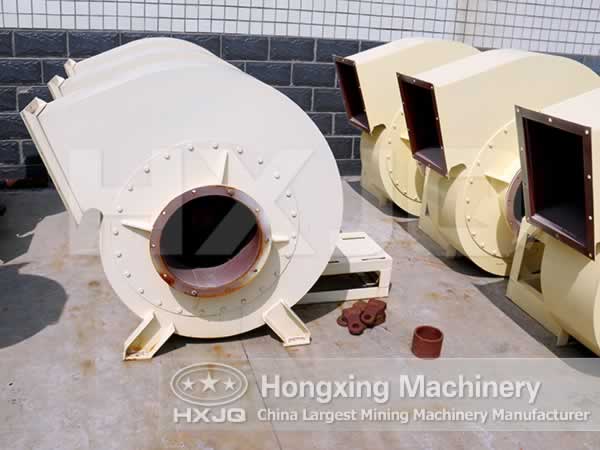

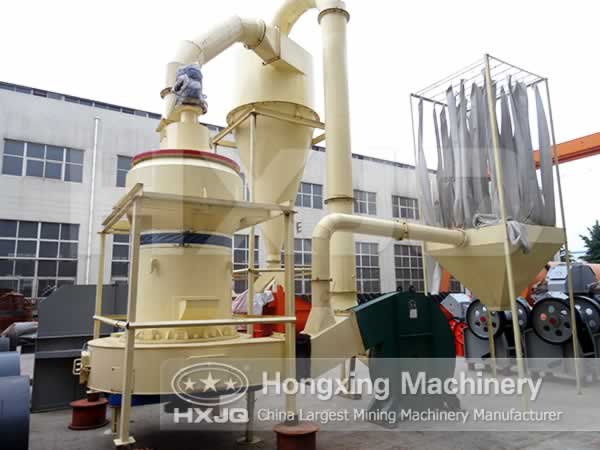

Raymond mill is used for ore preparation and coal preparation such as the fine grinding process of ore raw material, gypsum ore and coal materials. The machine consists of the host, analyzer, plumbing installation, blower, micro powder cyclone separator, while the host consists of rack, diffuser, shovel knife, grinding roll, grinding ring and housing device.

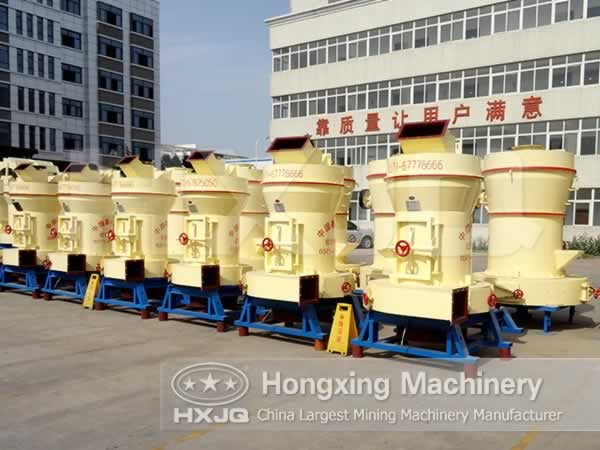

Raymond Mill

Raymond Mill

Working Principle

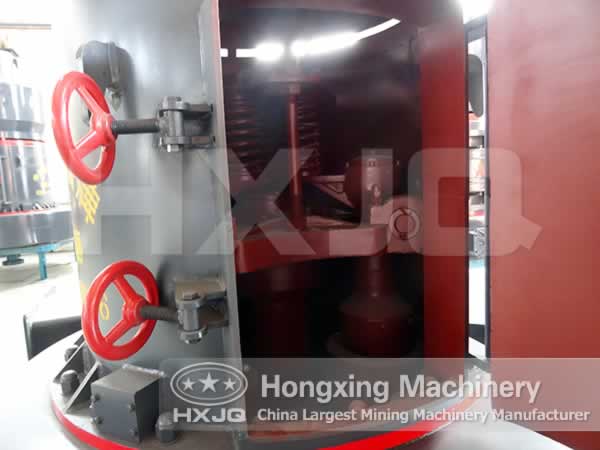

Grinding roller rotates under the centrifugal force. The shovel blade shovels the materials and sends them to a place between the grinding roller and grinding ring, and the materials with grinding pressure will be crushed into powder. Then the powder will be blown up by the blower to the analyzer. The powders that meet the fineness can go through the analyzer and are collected by the micro powder cyclone separator, otherwise, the powders will be returned to the grinding chamber to be ground again.

raymond grinder

Application Range

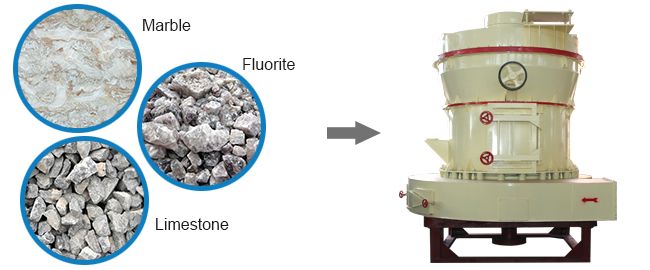

Raymond mill is widely used in ultrafine grinding process of barite, calcite, potassium feldspar, limestone, talc, marble, dolomite and gypsum, etc. It also can do the super fine grinding process of non-flammable and non-explosive ore, chemical and construction materials with Mok's hardness under 9.3 and humidity below 6%. The particle size of the products can be regulated within 40-400. This series of Raymond mill can be divided into high-pressure micro powder grinding mill, strong pressure suspension grinder and general Raymond mill according to the fineness and productivity of finished products.

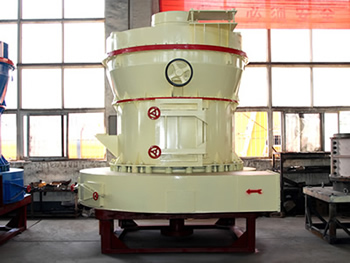

raw material mill

Technical Data

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) ?0.044-?0.173 0.044-0.173
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor y315m-4-132 y280s-4-75
Fan Motor y315m-4-132 y250m-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
