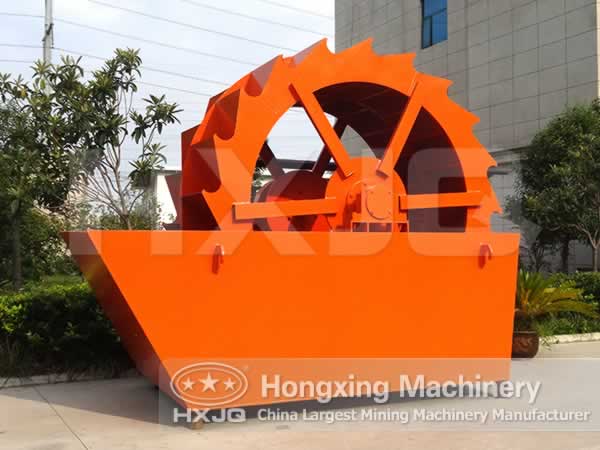

Sand Washer

Sand Washer


Processing capacity: 1-105t/h

Feeding size: 125-250mm

Feed opening: 150×250-300×1300mm

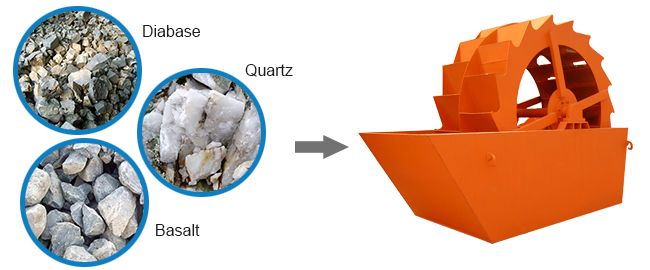

Applied material: barite, marble, talcum, calcite, dolomite, fluorite, kaoline, coal, gypsum.

Introduction to Sand Washing Plant

China sand washer or sand washing machine or sand washing plant made by us, the leading sand washer supplier, is the professional and high-efficient washing equipment for cleaning the artificial sand (including natural sand).  Sand washing machine manufactured by the famous China sand awsher supplier is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixing station and so on. China sand washer made by our company as the leading sand washer supplier can be divided into two types: XS type and XL type, and it can remove the impurities covering the sand and destroy the vapor layer of the sand.

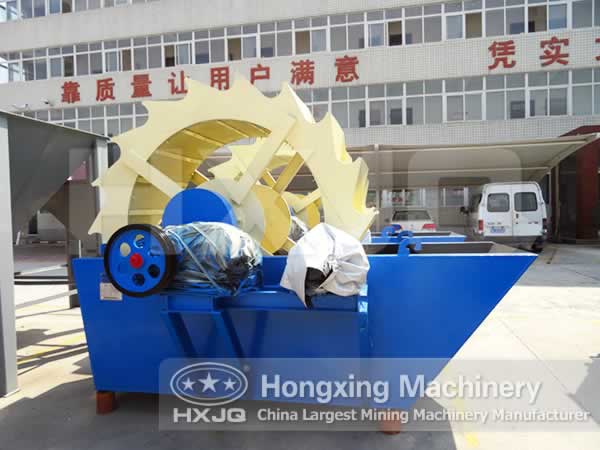

Sand Washer

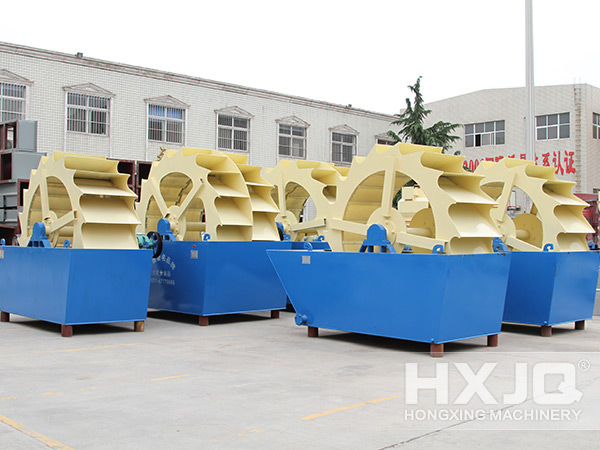

Sand Washer

Working Principle of Sand Washing Plant

The electric motor of the sand washing machine runs slowly after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into the washing launder from feeding launder, roll with the impellor and grind each other, so the impurities covering the sand can be washed away. At the same time, add more water, the strong water flow will take away some low-weight waste from the washing launder. Finally, the sand and stone will be sent to the out launder from the rotary impellor to finish the washing task of the sand washing plant.

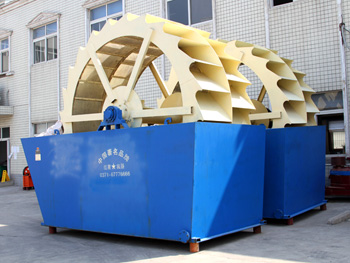

Sand Washer

Technical Data

Specification
XS2200
XS2600
XS2900
XS3500
Wheel bucket diameter
(mm)
2200
2600
2900
3500
Rotation Speed
(r/min)
1-2
1-2
0.8-1.5
0.8-1.2
Processing capacity (t/h)
15-30
20-50
50-100
120-200
Motor power
(kw)
8P   4
8P   5.5
8P   7.5
8P   11
Total weight
(kg)
4300
5600
8100
9900
Dimensions (L×W×H)
(mm)
3150×1910×2280
3520×2390×2690
3820×2640×3200
4420×2930×3800
