- Technical Data

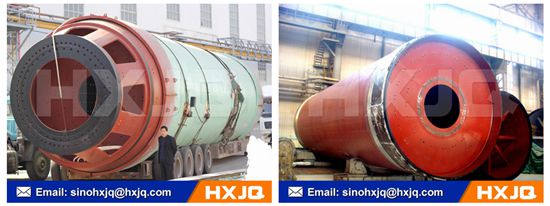

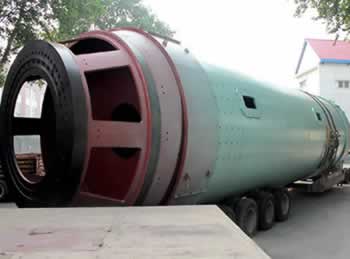

Cement mill is one of the most important machines used in cement making line and it is the key equipment for re-crushing the materials after they are primarily crushed. Cement mill plays a crucial role in cement production line and cement making technology.
Cement mill is widely used for the dry type or wet type powder grinding of all kinds of ores and other grinable materials in the production industries of cement, silicate product, new type building material, refractory, fertilizer, ferrous and non-ferrous metal ore beneficiation and glass ceramic industry.
Cement mill is composed of feeding part, discharging part, rotation part and driving part (gear box, small transmission gearwheel, motor and electric control). The central hollow shaft is made up of cast steel, and the inner liner can be changed, and there are wearable liners with favorable anti-wear ability in the body. Reliability and stability are the main advantages of this equipment.
|Milling form||Transmission form||Gear box||Motor power
|Model||Speed reduction ratio|
|Φ2.2×11||Open flow||Central shaft||D110||35.5||630||12-13||104.6|
|Φ2.2×13||Open flow||Central shaft||D110||35.5||630||16-18||114|
|Φ2.4×13||Open flow||Central shaft||D110||35.5||800||20-23||130.6|
|Φ2.6×13||Open flow||Central shaft||MFY100||19.5||1000||28-32||158|
|Φ3×11||Circle flow||Central shaft||D140||42.8||1250||36-47||180|
|Φ3.2×13||Open flow||Central shaft||D140||36.5||1600||45-50||225|
|Φ3.8×13||Open flow||Central shaft||MFY250||16.5||2500||60-62||320|
|Φ4.2×13||Open flow||Central shaft||JQS3550||15.6||3530||85-87||380|
|Φ4.6×14||Circle flow||Central shaft||JSI160-C||14.6||4200||120-135||485|
