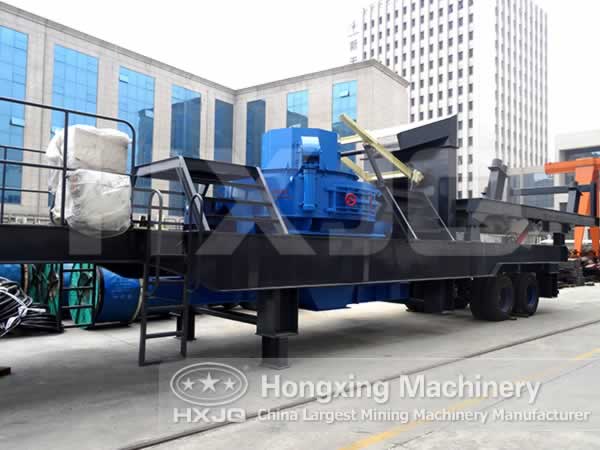

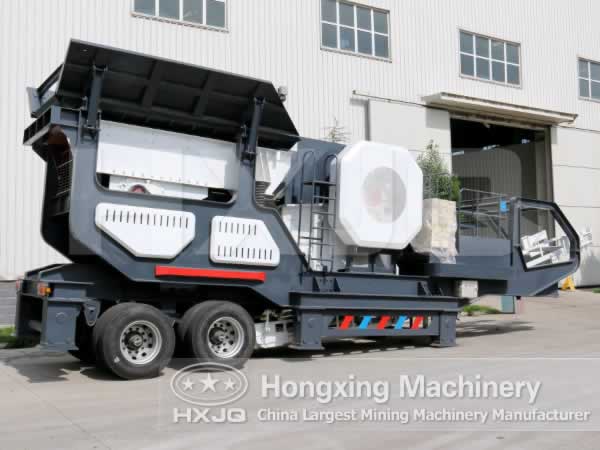

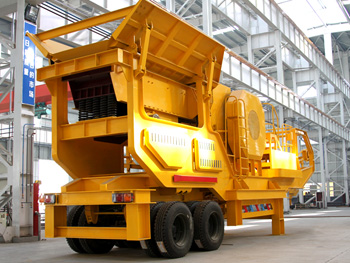

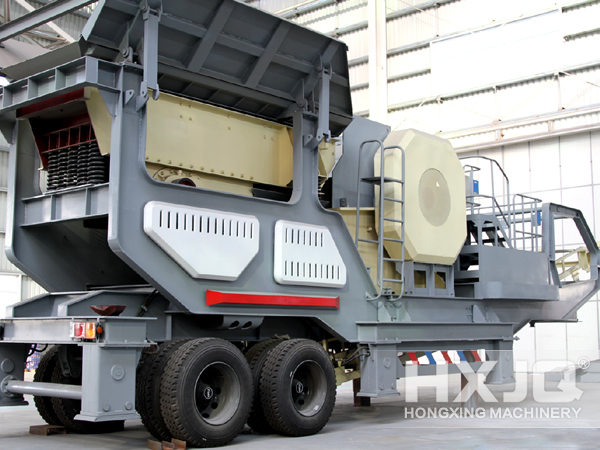

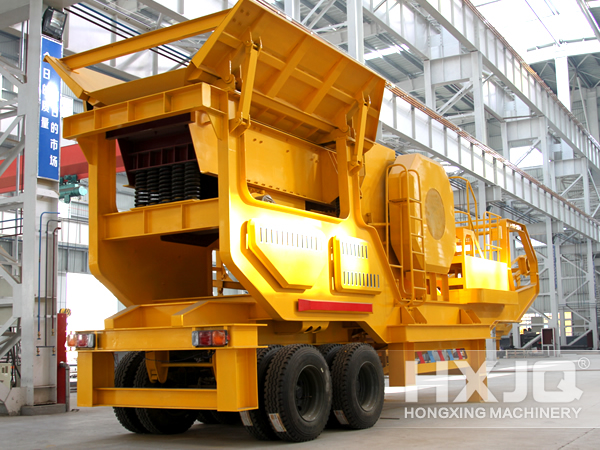

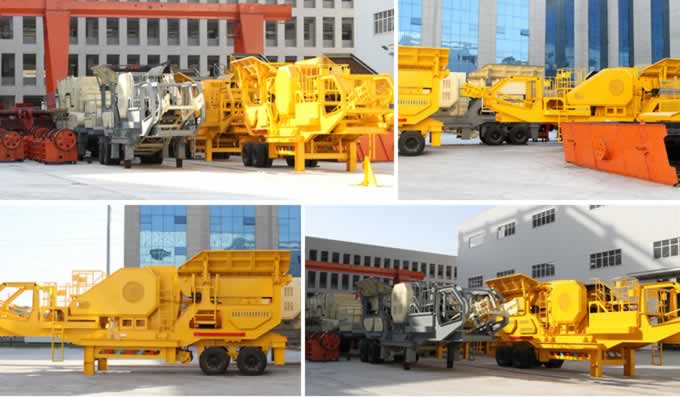

Portable rock crusher
Production Capacity:90–500 t/h
Feeding size: 480–750 mm
Outlet size: 65–200 mm
Applied material: pebble, limestone, granite, basalt, diabase, andesite, etc
Recommended Machines
Overview of Portable Rock Crusher
Portable rock crusher can be seen as a simple stone production line, widely used in railways, roads, buildings, water, metallurgy and other industries. Mobile crushing plant processes raw materials according to different requirements of the finished products , especially in breaking site, which is more suitable for construction wastedisposal, construction of garbage crusher. Stone portable machine is especially suitable for the small crushing site, construction waste processing and crushing.
.jpg)
.jpg)
.jpg)
.jpg)

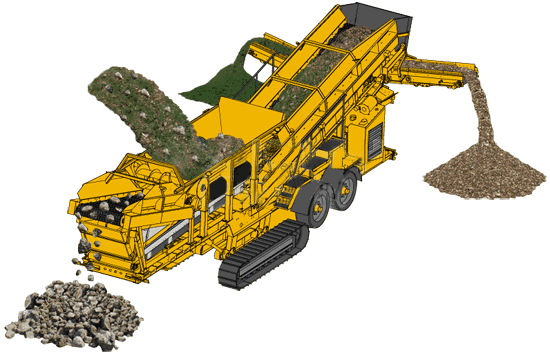

Working Principle of Portable Rock Crusher
Block stone will be evenly fed into jaw crusher from silo by vibrating feeder for primary crushing, then, the stone after primary crushing will be fed to the impact crusher by belt conveyor for further crushing; after further crushing, the stone will be fed into vibrating screen by belt conveyor for screening and getting stones with several different specifications, and then the stone that meets size requirements will be sent to finished stockpile by belt conveyor; while the other that does not meet the size requirements will be fed into the impact crusher by belt conveyor for re-crushing, so the above steps form a closed multiple cycles. The product size can be combined and graded according to the needs of users, and the portable aggregate plant can be equipped with auxiliary dust removal equipment for protecting the environment.
Leave us a message for more details and price list?
Technical Data
MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS
| Model | HX938F1210 | HX938FW1214 | HX1149F1315 | HX1349HD1110 | HX1349HD1315 |
| Transportation Length（mm） | 12000 | 12000 | 13900 | 15450 | 15450 |
| Transportation Width（mm） | 2550 | 2550 | 2900 | 2950 | 2950 |
| Transportation Height（mm） | 3900 | 3900 | 4450 | 4500 | 4500 |
| Maximum Length（mm） | 12500 | 12500 | 13900 | 15450 | 15450 |
| Maximum Width（mm） | 3250 | 3260 | 3250 | 3250 | 3250 |
| Maximum Height（mm） | 5100 | 5200 | 5200 | 5200 | 5200 |
| Weight（t） | 39 | 44 | 54 | 62 | 62 |
| Crusher Model | PF-1210 | PF-1214 | PF-1315 | HD1110 | HD1315 |
| The Maximum Feeding Size（mm） | 350 | 350 | 500 | 400 | 700 |
| Production Capacity（t/h） | 70-130 | 100-180 | 130-250 | 112 | 280 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M | B800×11M | B1200×11M |
| Side-opening Belt conveyor(Optional) | B500×3.2M | B500×3.2M | B650×4M | B650×4M | B650×4M |
| Genset(Optional) （kw） | 320 | 320 | 400 | 320 | 440 |
| Iron Separator (Optional)（kw） | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-12 |
MOBLIE JAW CRUSHER TECHNICAL PARAMETERS
| Model | HX938HD80 | HX1149HD98 | HX1349HD110 | HX1349HD125 |
| Transportation Length(mm) | 12600 | 13500 | 14500 | 15200 |
| Transportation Width(mm) | 2600 | 2700 | 2800 | 2900 |
| Transportation Height(mm) | 3870 | 4200 | 4450 | 4500 |
| Maximum Length(mm) | 12500 | 14000 | 16100 | 14700 |
| Maximum Width(mm) | 4100 | 4500 | 5100 | 5100 |
| Maximum Height(mm) | 4100 | 4900 | 5000 | 5300 |
| Weight(t) | 39 | 57 | 55 | 65 |
| Tire Configuration | Dual-axial | Dual-axial | Dual-axial | Dual-axial |
| Jaw Crusher | HD80 | HD98 | HD110 | HD125 |
| Maximum Feeding Size(mm) | 500 | 550 | 660 | 800 |
| Discharge Opening Size(mm) | 50-150 | 75-175 | 100-200 | 125-225 |
| Capacity(t/h) | 85-275 | 110-350 | 215-510 | 280-650 |
| Vibrating Model | ZSW380×95 | ZSW420×110 | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B800×8.5M | B1000×9.5M | B1000×11M | B1200×11M |
| Side-opening Belt conveyor(Optional) | B500×3M | B650×3.5M | B650×4M | B650×4M |
| Genset(Optional) (kw) | 200 | 250 | 270 | 400 |
| Iron Separator (Optional) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-10 | RCYD(C)-12 |
MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS
| Model | The Maximum Feeding Size （mm） |
Production Capacity （t/h） |
| HX938F1210 | 350 | 70-130 |
| HX938FW1214 | 350 | 100-180 |
| HX1149F1315 | 500 | 130-250 |
| HX1349HD1110 | 400 | 112 |
| HX1349HD1315 | 700 | 280 |
MOBLIE JAW CRUSHER TECHNICAL PARAMETERS
| Model | Maximum Feeding Size(mm) |
Capacity(t/h) |
| HX938HD80 | 500 | 85-275 |
| HX1149HD98 | 550 | 110-350 |
| HX1349HD110 | 660 | 215-510 |
| HX1349HD125 | 800 | 280-650 |
