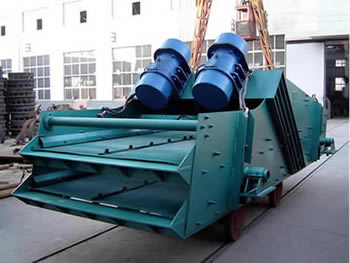

Linear Vibrating Screen
Processing capacity: 10-600t/h
Feeding size: ≤200-≤300mm
Sieve layer: 1-2
Mesh size: 4-150mm
Double amplitude: 6-10mm
Recommended Machines
Product Description
Linear vibrating screen is a new and high efficient classification equipment, and it is widely used in mining, coal dressing, smelting, building material, refractory material, light industry and other industries. Linear vibrating screen has advantages of steadiness and reliability, low consumption, low noise, long service life, stable vibration mode and high screening efficiency.
Linear vibrating screen uses vibration motor as vibration source to make the materials to be tossed in the sieve to move forward in a straight line. The material can be evenly fed from feeder into the feeding port of screening machine.
Characteristics
1) The unique mesh structure design makes it easy and quick to replace the screen (just 3-5 minutes). In addition, linear vibrating screen with such design allows the use of various mesh, such as, nylon, special Long, PP and so on.
2) The screen is of witty design, even one person can handle the screening machine.
3) Larger screening area and high efficient processing capabilities.
4) The main mesh fully supports the fine mesh, so the fine mesh could score a longer life, and many costs can be reduced in the long production process.
Technical Data
| Model | Sieve specification(L×W) |
Sieve layer |
Mesh size |
Feeding size |
Processing capacity | Motor power |
Total weight | Vibrating frequency | Double amplitude | Sieve obliquity |
Dimensions (L×W×H) |
| （mm） | （mm） | （mm） | (t/h) | （kw） | （kg） | (Hz) | (mm) | （℃） | (mm) | ||
| ZSG1237 | 3700×1200 | 1 | 4-50 | ≤200 | 10-100 | 5.5×2 | 2250 | 16 | 6-8 | 15 | 3800×2050×1920 |
| 2ZSG1237 | 3700×1200 | 2 | 4-50 | ≤200 | 10-100 | 5.5×2 | 3345 | 16 | 6-8 | 15 | 3800×2050×2200 |
| ZSG1443 | 4300×1400 | 1 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4100 | 16 | 6-8 | 15 | 4500×3040×2500 |
| 2ZSG1443 | 4300×1400 | 2 | 4-50 | ≤200 | 10-150 | 5.5×2 | 4900 | 16 | 6-8 | 15 | 4500×3040×2700 |
| 3ZSG1443 | 4300×1400 | 3 | 4-50 | ≤200 | 10-150 | 5.5×2 | 5870 | 16 | 6-8 | 15 | 4500×3040×2820 |
| 2ZSG1548 | 4800×1500 | 2 | 5-50 | ≤200 | 15-200 | 7.5×2 | 5836 | 16 | 8-10 | 15 | 4800×3140×2814 |
| 3ZSG1548 | 4800×1500 | 3 | 5-50 | ≤200 | 15-200 | 7.5×2 | 6900 | 16 | 8-10 | 15 | 4799×3140×3014 |
| 2ZSG1848 | 4800×1800 | 2 | 5-50 | ≤300 | 50-500 | 7.5×2 | 6489 | 16 | 8-10 | 15 | 4799×3440×2814 |
| 3ZSG1848 | 4800×1800 | 3 | 5-50 | ≤300 | 50-500 | 7.5×2 | 7750 | 16 | 8-10 | 15 | 4799×3440×3014 |
| 4ZSG1848 | 4800×1800 | 4 | 5-50 | ≤200 | 50-500 | 11×2 | 8300 | 16 | 8-10 | 15 | 4799×3440×3503 |
| 2ZSG1860 | 6000×1800 | 2 | 5-150 | ≤300 | 80-600 | 11×2 | 9950 | 16 | 8-10 | 15 | 6000×3440×3326 |
| Model | Feeding size |
Processing capacity |
| （mm） | (t/h) | |
| ZSG1237 | ≤200 | 10-100 |
| 2ZSG1237 | ≤200 | 10-100 |
| ZSG1443 | ≤200 | 10-150 |
| 2ZSG1443 | ≤200 | 10-150 |
| 3ZSG1443 | ≤200 | 10-150 |
| 2ZSG1548 | ≤200 | 15-200 |
| 3ZSG1548 | ≤200 | 15-200 |
| 2ZSG1848 | ≤300 | 50-500 |
| 3ZSG1848 | ≤300 | 50-500 |
| 4ZSG1848 | ≤200 | 50-500 |
| 2ZSG1860 | ≤300 | 80-600 |
