Powder grinding equipment

Powder grinding equipment


Production Capacity:2-120 t/h

Feeding size: ≤15-≤30mm

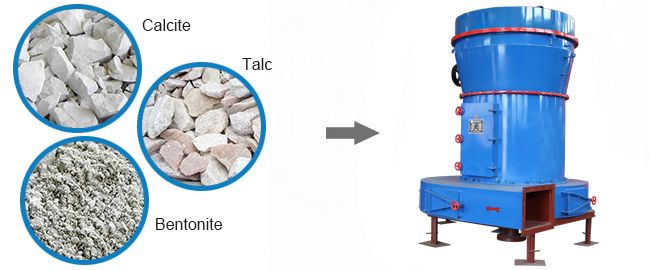

Applied material: barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite.

Brief Introduction to Powder Grinding Equipment

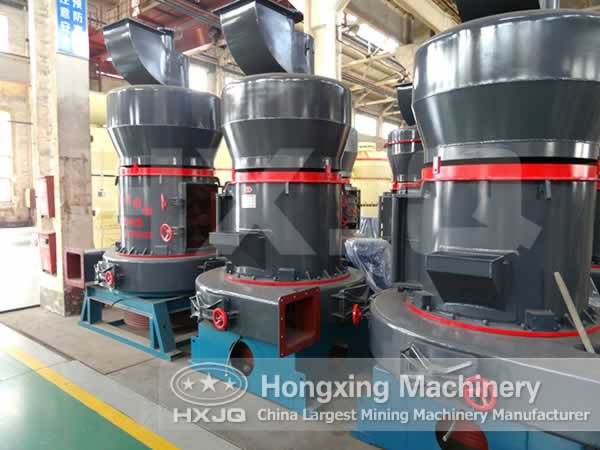

Powder grinding equipment

Powder grinding equipment is a type of powder making machine widely used for the powder grinding and processing of mineral materials in metallurgy, building material, chemistry, mine and other industries. According to the fineness of the materials to be ground and the fineness of the discharged materials, the grinding plant can be divided into Raymond mill, high pressure suspension grinding mill, micro powder high pressure grinding mill, super pressure ladder-typed grinder mill and three-ring medium-speed grinder mill. The high pressure grinding mill is the most popular one on the market.

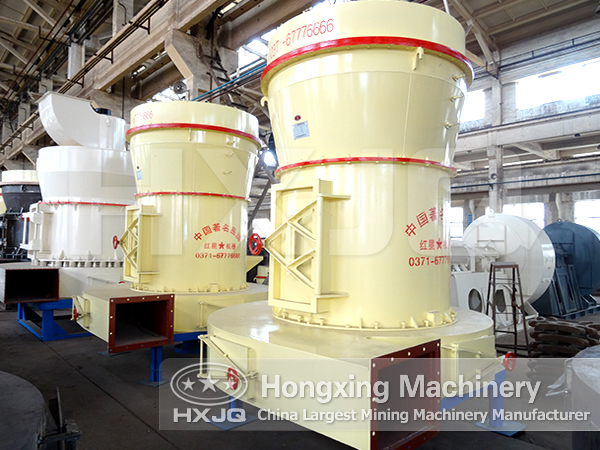

powder grinding equipment

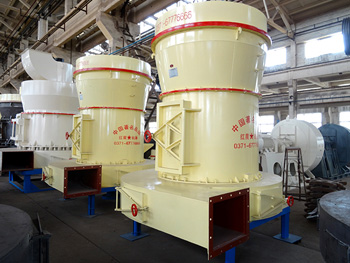

Powder grinding equipment

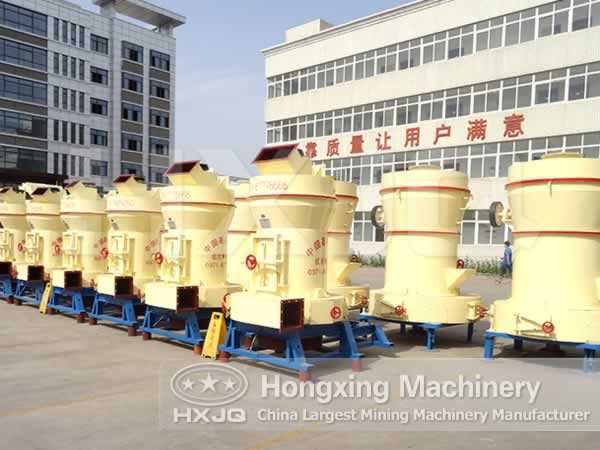

powder grinding equipment

powder grinding equipment

Composing Structure of Grinding Plant

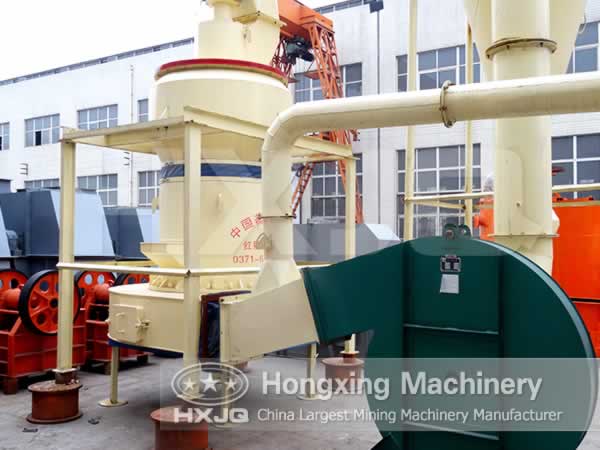

A grinding plant is mainly composed of main engine, analytical engine, air blower, cyclone separator for final products, plumbing installation and electrical machine. The main engine of the powder making machine is mainly made up of rack, inlet air volute, relieving tool, grinding roll, grinding ring, cover piece and electrical machine and the auxiliary equipment includes jaw crusher, bucket elevator, electro-vibrating feeder and electronic control, which can be flexibly chosen according to the specific working site of the customers.

Working Principle of Grinder Mill

Materials crushed into the required size will be sent to storage hopper through the elevator, and then be uniformly and continuously fed into grinder chamber of the powder making machine through vibration feeder. The fine powder after grinding through the powder grinding equipment will be brought into analytical engine through blower cycle wind for sorting, and coarse material will be re-ground, while the qualified fine powder will enter the finished product powder collector led by airflow and discharged via the powder discharging tube.

Technical Data

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
Model Feeding Size(mm) Output Size(mm)
4525 ≤30 0.173-0.044
4119 ≤25 0.173-0.044
