1500 × 2100 simple pendulum crusher and complex pendulum crusher

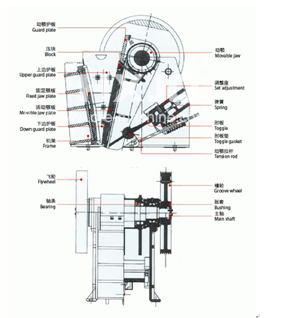

1500 × 2100 simple pendulum crusher
1500 × 2100 simple pendulum crusher machine is a large jaw crusher machine; its weight is about 20%~30% of the complex pendulum crusher; the trajectory of moving jaw is not ideal, its upper horizontal stroke is smaller and lower horizontal stroke is larger. The crusher adopts crank double linkage mechanism, although the moving jaw has large breaking reaction force, it only works on eccentric shaft and connecting rod little; so the industries often adopt large and mid-sized machine to break hard materials. In addition, when this crusher works, the trajectories of each point on the movable jaw are circles basing the mandrel as center; arc radius is equal to the distance of the point to the axis, the upper end arc is small and the lower end arc is large, crushing efficiency is low with crushing ratio of 3-6.

simple-pendulun-crusher complex-pendulum-crusher

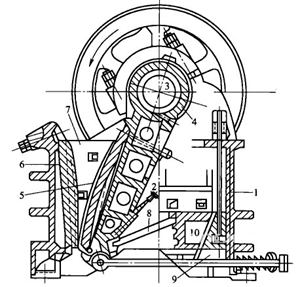

1200 × 1500 complex pendulum crusher
1200 × 1500 complex pendulum crusher is a medium-sized complex pendulum jaw crusher, it is composed by rack, eccentric shaft, big pulley, flywheel, moving jaw, side guard plate, toggle plate, adjusting gap screw, reset spring, fixed jaw plate and movable jaw plate. Complex pendulum jaw crusher tooth plate has low wear rate, product size is small and cubic-shaped; it can enhance the structural strength of concrete parts. It can break the ore of 80-250mm to 25mm or less once, wherein the 5-15mm particle size accounts for 40% -60% of the total amount.
Complex pendulum crusher features: lighter weight, fewer components, more compact structure, the filling degree in crushing cavity is better, so the materials can be broken uniformly, improving productivity by20% -30% compared with the same specifications simple pendulum crusher; material block gets up and down tumbling motion in the lower part of the movable jaw, easy to be cube-shaped, reducing schistose ingredients, with better product quality. It has simple and reasonable structure, high yield, large crushing ratio, long life of the tooth plate, uniform finished particle size, low power consumption and easy maintenance; it is the most advanced model currently.
