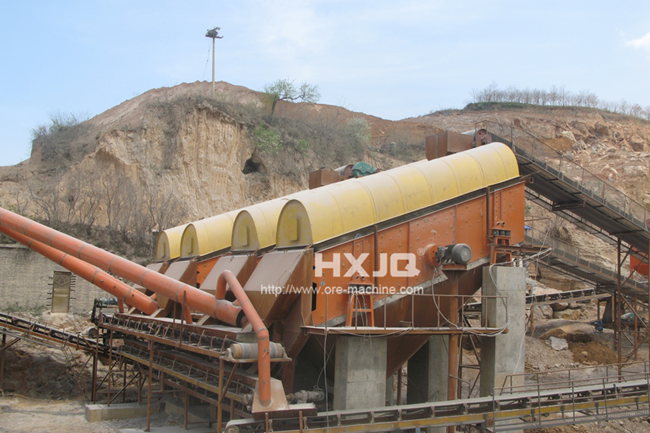

ZS series linear vibrating screen

ZS series linear vibrating screen is widely used in metallurgy, building materials, chemical industry, refractory materials, cement, ceramics, food and other industries. It can be used in pipeline operations to achieve automatic production.


Compared with other types of vibrating screen, linear vibrating screen has the following characteristics: small size, light weight, simple structure, easy installation, easy maintenance; low noise, low energy consumption, high efficiency and low cost; high screening accuracy, no dust pollution, environmental protection; long service life.

ZS series linear vibrating screen is composed by vibration motor, screen box, screen, vibration body and damping or isolation device. Screen box is a major part of the screening machine, it is welded by several steel plates of different thickness with a certain strength and stiffness; screen can be divided into low carbon steel type, brass type, bronze type and stainless steel type; damping or isolation device is used for preventing the vibration passing to the ground and for supporting the entire weight of the sieve box.

Working principle:
When the two vibrating motors which longitudinally mounted in a sieve do relative rotation, the two vibrating motors at both ends of the eccentric block will produce rated excitation force, the exciting forces generated in landscape orientation offset each other due to the relative motor rotation; its longitudinal excitation force is transmitted to the entire sieve box by the vibration body, so that the sieve surface vibrates, and the materials, subjecting to the excitation force, jump to the direction of discharging mouth in screen surface; the materials smaller than the mesh fall onto the lower layer through the sieve and discharged from the discharge hole by continuous jumping.
